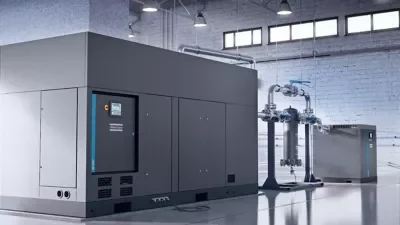

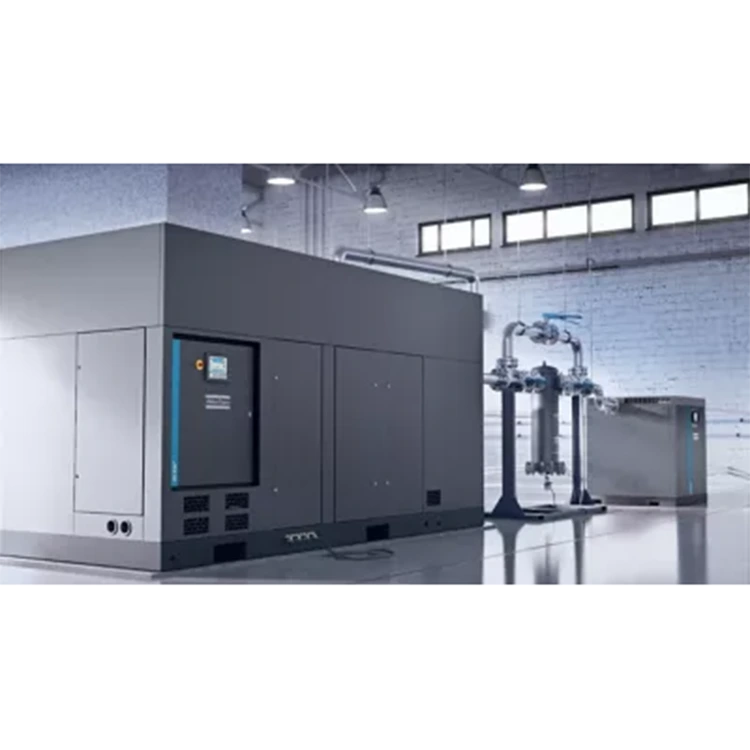

Centrifugal Oil-Free Air Compressor pressure coverage 2.5-13bar, displacement 76-587m³/min, motor power 355-3150kW, ISO 8573-1 CLASS 0 certification. Equipped with energy-saving impellers and Elektronikon® control systems, it can be linked with intelligent solutions to reduce costs, be compatible with multiple industries, and also contribute to carbon neutrality through energy recovery. It features high purity, high efficiency and high reliability. We are a professional Air compressor manufacturer and supplier in China. Welcome to consult and purchase.
compressor ZH and ZH+
Industrial oil-free air compressor - from 2.5 to 13 bar
High-efficiency centrifugal air compressors.
Engineered using innovative in-house technology, the ZH centrifugal air compressor is the result of years of experience in the design of oil-free air
Key technical specifications
Capacity FAD l/s
1,272 l/s - 9,790 l/s
Capacity FAD
4,579 m³/h - 35,244 m³/h
Capacity FAD m³/min
76 m³/min - 587 m³/min
Working Pressure
2.5 bar(e) - 13 bar(e)
Installed motor power
355 kW - 3,150 kW

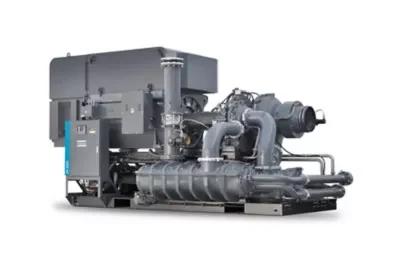

ZH and ZH+ technical features
ZH and ZH + centrifugal oil-free air compressors include
•core compressor
•main drive motor energy saving inlet guide vanes
•easily accessible gearbox
•AGMA Class A4 gears
•high-efficiency stainless steel intercoolers and after-coolers
•controller for maximum reliability

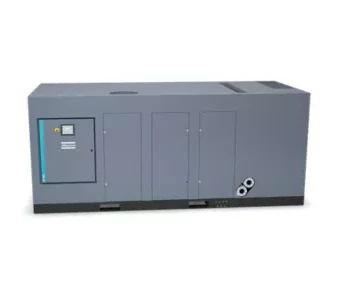

A complete packaged solution: ZH+
The centrifugal oil-free air compressor ZH+ comes as a complete packaged solution with
•efficient inlet silencer and filter
•integrated blow-off valve and silencer
•mounted cooling water manifold
•sound attenuating canopy
•Oil-free air centrifugal compressor ZH+
Industrial applications
Centrifugal oil-free air compressors are mainly used in applications for
•the food and beverage industry
•the chemical and petrochemical industry
•the pulp and paper industry
•the textile industry
•electric car batteries production
Protect your compressed air production
Elektronikon® control ensures maximum operating efficiency. It protects your production with advanced warnings for service and operating parameters
Keeping your production up and running
Built using strict codes of quality control. Designed and manufactured according to ISO 22000, ISO 9001, ISO 14001, and OHSAS 18001. Easy maintenance for reduced service cost
smart AIR solutions
Designed to work together with our dryers and ES controller to optimize your overall system performance
Compressed air quality
ZH and ZH+ oil-free air compressors provide clean air with ISO 8573-1 CLASS 0 (2010) certification. No external instrument air is required for “Class 0” certification due to the unique seal design
Reduce your energy costs
Unique impellers provide the optimum combination of a high flow with low energy consumption
Maximize your energy efficiency
Combine the ZH+ centrifugal compressor advanced turbo technology with the regulating capabilities of the ZR VSD screw compressor to eliminate costly blow-off
|
Technical Property |
Value |
|
Capacity FAD l/s |
1,272 l/s - 9,790 l/s |
|
Capacity FAD |
4,579 m³/h - 35,244 m³/h |
|
Capacity FAD m³/min |
76 m³/min - 587 m³/min |
|
Working Pressure |
2.5 bar(e) - 13 bar(e) |
|
Installed motor power |
355 kW - 3,150 kW |
The components of the oil-free centrifugal compressors have been carefully designed in-house. This reduces losses and pressure drop to a minimum, resulting in the highest compressor package efficiency.
Our oil-less compressors are also class 0 certified, delivering the highest air purity at the lowest total cost of ownership. By using our state-of-the-art centrifugal compressor technologies you're guaranteed a reliable and efficient compressor.
Recover your energy
You can turn your centrifugal air compressors into an energy source. By adding an Energy Recovery unit you will be one step closer to achieving your goals in becoming carbon neutral. Up to 94% of the electrical energy is converted into compression heat.
Without energy recovery, this heat is lost in the atmosphere via the cooling system and radiation. Our energy recovery unit uses compression heat to heat up water. This warm water can be used for sanitary purposes, space heating, or process applications.
Save energy with smart monitoring technology
Our compressor monitoring system saves energy by using advanced control algorithms. The dual pressure band can lower the pressure in your system during e.g. weekends and night shifts. Our Elektronikon® controller is the brain of the compressor collecting data for optimal energy efficiency.
Monitor your compressed air system
It's important to know the status of your compressed air installation. With the Elektronikon® you can easily connect your controller with your mobile devices such as tablets and smartphones.
Our SMARTLINK system allows mobile monitoring over a secure network. Monitoring your system not only saves you money but also avoids breakdowns and production losses.
