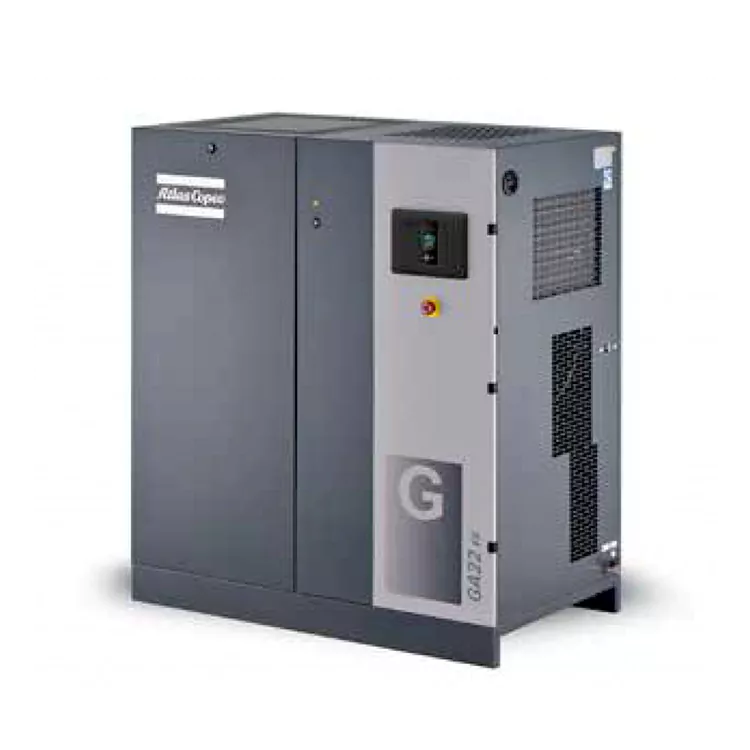

Oil-Injected Screw Compressor

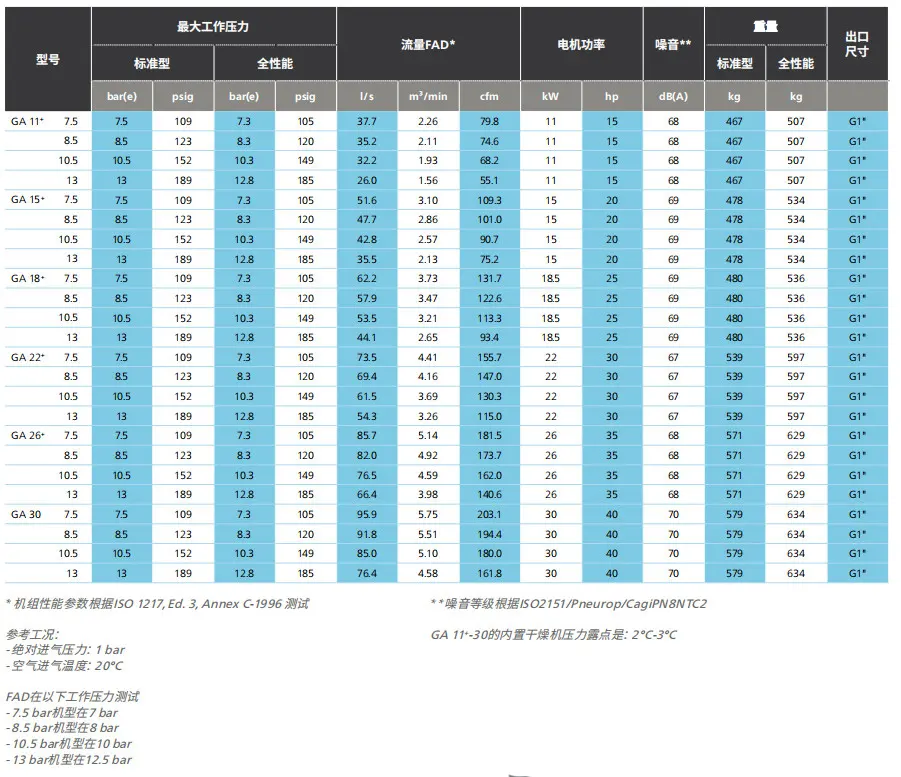

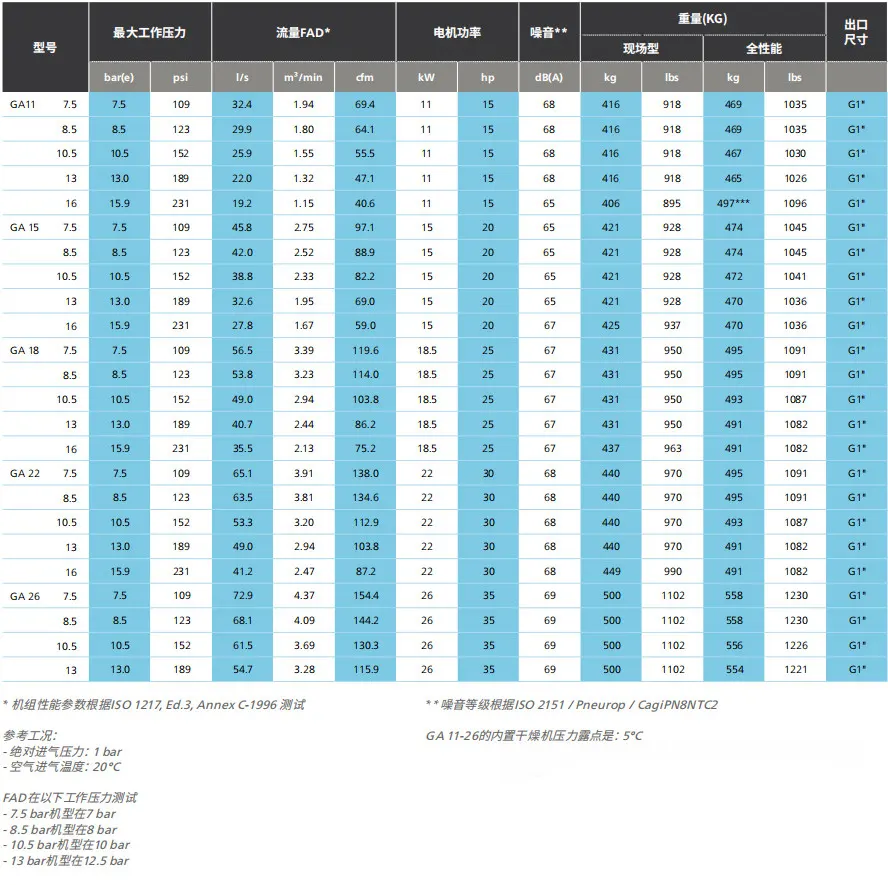

Technical Parameters

GA 11-26:Compact compressed air system

GA 11+ -30:The leader in the fixed-frequency air compressor industry

Product Introduction

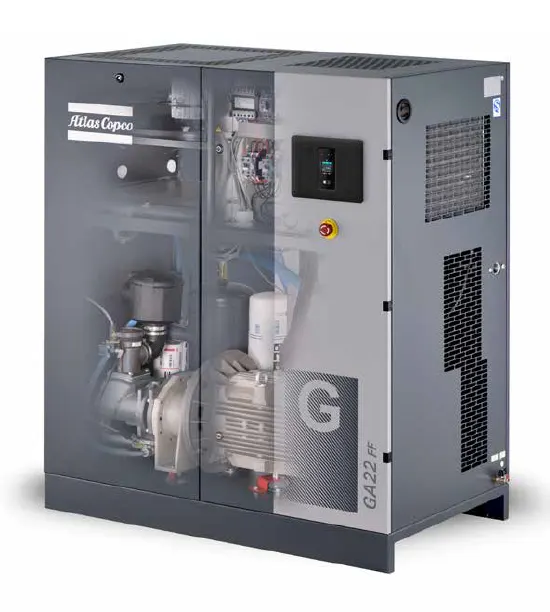

GA 11-26:Compact compressed air system

Durable and efficient motors and rotors

·GA11-26 adopts new rotor and IE2/IE3 high efficiency motor, which is durable and efficient.

·Oil-Injected Screw Compressor is more efficient than belt drive

·High reliability of gear transmission and simpler maintenance

New and upgraded surveillance system

·New Elektronikon® sliding key screen controller with built-in intelligent algorithm to optimize system pressure and reduce overall energy consumption

·Remote start and stop, fault alarm, maintenance reminder

·Built-in SMARTLINK remote monitoring, master the real-time status of the system

·Built-in phase sequence protection to avoid accidental losses caused by motor reverse rotation

High-tech oil-gas separator

·New vertical design of oil and gas separator reduces oil residue and avoids oil contamination

·The right volume design of the oil and gas separator reduces compressed air losses during loading and unloading

Integrated compressed air solutions

·Independent cooling fan, high efficiency cooler, and built-in dryer with 5℃ dew point pressure to better avoid condensate and pipe corrosion in the pipe network

·Built-in dryer adopts lossless electronic drain valve to avoid compressed air loss

·Optional filter can reduce the oil content of compressed air to <0.01ppm, easy to install

·FF model with built-in dryer, plug and play, avoid installation trouble

·Oil-Injected Screw Compressor occupies a small area, easy to install and transport

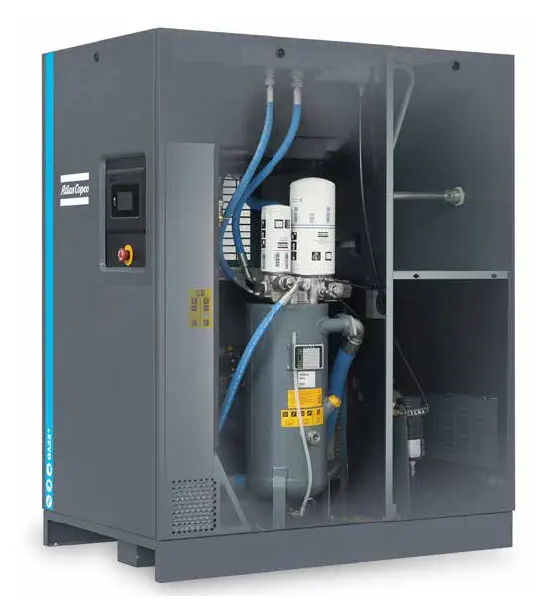

GA 11+ -30:The leader in the fixed-frequency air compressor industry

Efficient motor and drive system

·Oil-Injected Screw Compressor uses Atlas Copco's core drive train and efficient gearbox for very high reliability

·Equipped with efficient IE3/IE4 efficient motor, motor bearing life-long grease lubrication, reduce follow-up trouble

·New upgrade, FAD exhaust volume increased by 6.9% on average, SER power consumption decreased by 3.3% on average

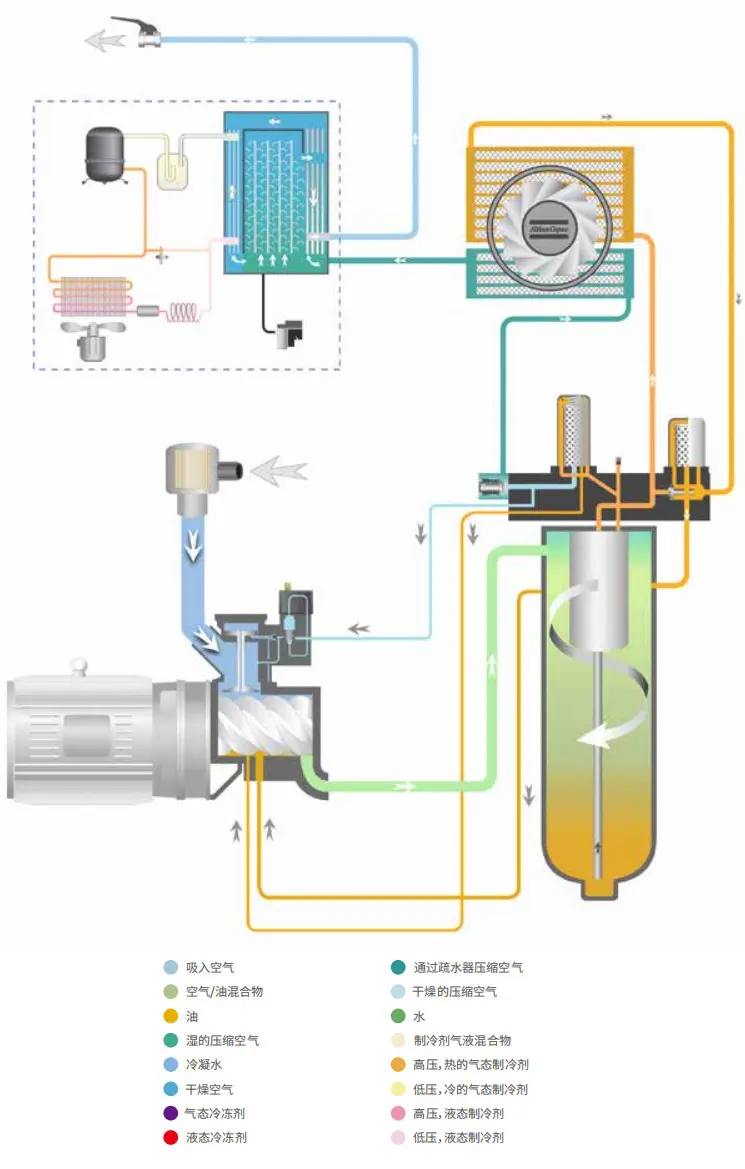

Complete compressed air solutions

·Built-in dryer adopts countercurrent heat exchanger, built-in water separator, and can adjust the dryer according to the air compressor load.

·Independent cooling fans, high efficiency coolers, and built-in dryers with 3 ° C dew point pressure better avoid condensate and pipe corrosion in the pipe network

·The water separator in the aftercooler can basically remove water. It comes standard with an electronic drain valve to achieve automatic drainage and reduce compressed air loss.

·Option to provide filters that can reduce the oil content of compressed air to <0.01ppm, new design longer life of the electric control cabinet

·Forced cooling of the electric control cabinet to further reduce the temperature in the cabinet, thereby improving the life of electronic components

Innovative fan

·Oil-Injected Screw Compressor new technical innovation, reduce fan energy consumption, effectively control noise, new upgraded touch screen monitoring system

·New Elektronikon® touch screen with built-in intelligent algorithms to optimize system pressure and reduce overall energy consumption

·Remote start and stop, alarm output, maintenance plan, network diagnosis

·Built-in SMARTLINK remote monitoring, master the real-time status of the system

·Built-in phase sequence protection to avoid motor reverse rotation

·Option to control multiple machines (2, 4, 6)
