Centrifugal Air Compressor

Centrifugal Air Compressors C400 & C700

Ingersoll Rand centrifugal Centrifugal Air Compressors are reliable, easy-to-install, and energy-efficient multi-stage centrifugal compressors.

■ Vertically split gearbox for easier and faster installation and maintenance.

■ Stainless steel water-vapor separator for superior reliability, effective corrosion prevention, and ensured air quality.

■ High-efficiency air cooler maintains low pressure drop, large cooling area, and achieves superior cooling effect.

■ ISO Class 0 100% oil-free air, available under all operating conditions, authorized by TÜV Rheinland.

■ Non-contact, low-pressure hydraulic bearings offer a long service life and low friction, with a lifespan 2-3 times longer than traditional bearings.

■ Floating carbon ring seals minimize air leakage and prevent oil from leaking into the air end, ensuring 100% oil-free air.

■ Comprehensive testing packaging, with testing standards according to ASME PTC 10.

■ Easy installation and maintenance, low operating costs.

■ High reliability; 20,000 Ingersoll Rand MSG® Centac® Centrifugal Air Compressors are used worldwide.

■ Global repair and parts support network.

■ Long-life large gears, capable of stable operation for up to 25 years

■ Backward-curved impeller provides stable pressure control while maximizing efficiency

■ Superior Xe series controller with a high-resolution true-color LCD display and network communication and control functions

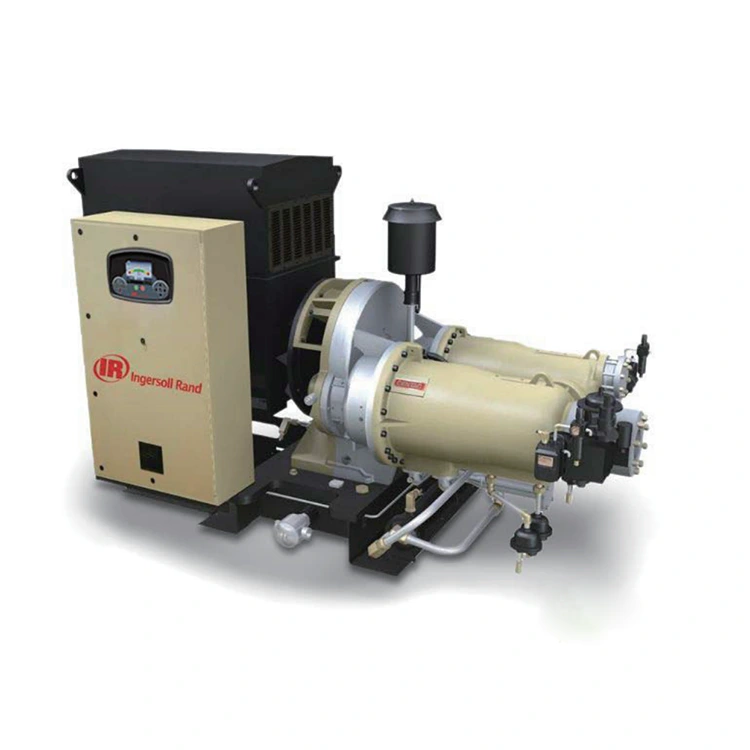

Centrifugal air compressor C400

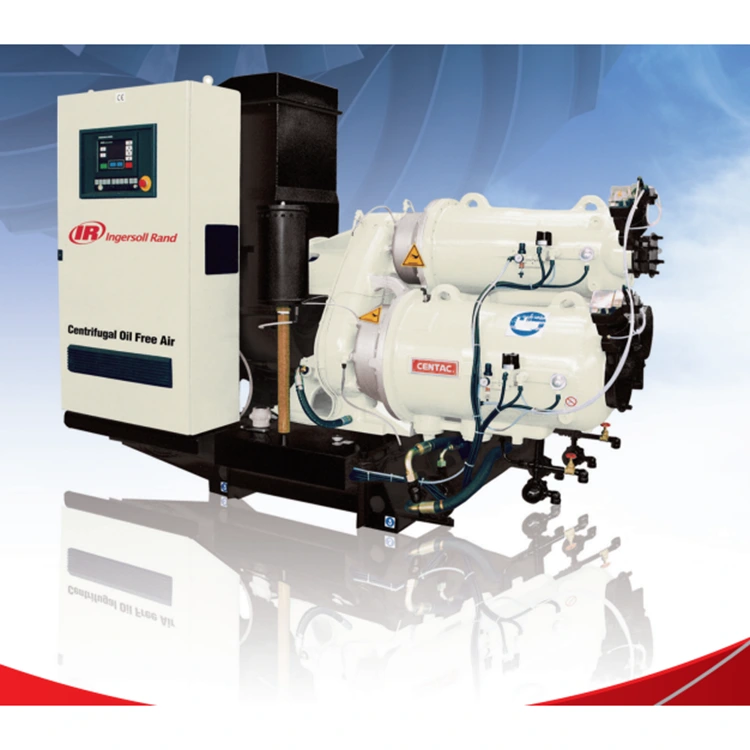

Centrifugal air compressor C700

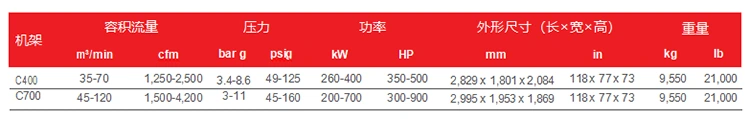

Features:

*Weight and volumetric flow rates are approximate values and vary depending on the range and selection. For detailed data, please contact Ingersoll Rand.
