Dechuan provides industrial compressed-air solutions designed for applications where stable airflow, energy efficiency, reliable operation, and simplified maintenance are essential. A Low-Pressure Oil-Free Screw Air Compressor is particularly suitable for low-pressure processes that require a dependable supply of compressed air while helping industrial users control operating costs and improve system efficiency.
Modern factories are increasingly looking beyond simple compressor output. They need equipment that can operate continuously, withstand demanding environments, provide intelligent monitoring, and maintain consistent performance over long service cycles. This is why low-pressure screw compressor technology has become an important solution for many industrial air systems.
A Low-Pressure Oil-Free Screw Air Compressor is designed for applications where compressed air is required at relatively low working pressures but with high flow efficiency and reliable continuous operation. The Dechuan product page describes the ZE/ZA series as a low-pressure screw compressor solution featuring advanced compression components, an efficient drive system, IE4 motor technology, intelligent control, filtration, cooling, and remote diagnostic capabilities.
For users evaluating a China compressor manufacturer or supplier, understanding pressure requirements, airflow, motor efficiency, operating environment, maintenance requirements, and intelligent control functions is essential. The right compressor should not simply produce compressed air; it should deliver the required air volume efficiently and consistently throughout the production process.
Table of Contents
- Article Summary
- What Is a Low-Pressure Oil-Free Screw Air Compressor?
- Why Do Industrial Applications Need Low-Pressure Compression?
- What Are the Main Advantages?
- How Does the Compressor Technology Improve Performance?
- What Are the Key Technical Parameters?
- Where Can It Be Used?
- How Should You Select the Right Compressor?
- Frequently Asked Questions
- Conclusion
What Is a Low-Pressure Oil-Free Screw Air Compressor?
A Low-Pressure Oil-Free Screw Air Compressor is a screw-type compressed-air system intended for applications where the required working pressure is lower than that of many conventional industrial compressed-air systems. Instead of selecting an unnecessarily high-pressure compressor and then reducing the pressure, users can choose equipment more closely matched to the actual process requirement.
The Dechuan ZE/ZA product information highlights low-pressure operation, advanced compression components, efficient transmission, intelligent control, and continuous-duty capability. The referenced Atlas GL 37-75 configuration covers working pressures of approximately 4–5.5 bar(e), with motor powers ranging from 37 kW to 75 kW.
This type of equipment can be valuable in production environments where large quantities of compressed air are required but excessive pressure would create unnecessary energy consumption.
Why Do Industrial Applications Need Low-Pressure Compression?
Compressed air is widely used in manufacturing, material handling, process equipment, pneumatic controls, cleaning systems, and automated production lines. However, not every application requires high-pressure air.
If a production process operates effectively at a lower pressure, using a compressor specifically designed around that operating range can help improve the overall efficiency of the compressed-air system.
- Better pressure matching: The compressor can be selected according to the actual process requirement.
- Efficient airflow: High air delivery can support applications requiring continuous air volume.
- Lower unnecessary compression: Avoiding excessive pressure can reduce wasted energy.
- Stable operation: Properly matched equipment helps maintain consistent production air.
- Continuous-duty capability: Industrial screw compressors are suitable for extended operating cycles.
For this reason, businesses should evaluate actual air demand and pressure requirements before purchasing a compressor rather than selecting equipment solely according to motor power.
What Are the Main Advantages of a Low-Pressure Oil-Free Screw Air Compressor?
The Dechuan product information identifies several features that contribute to long-term performance and operational reliability.

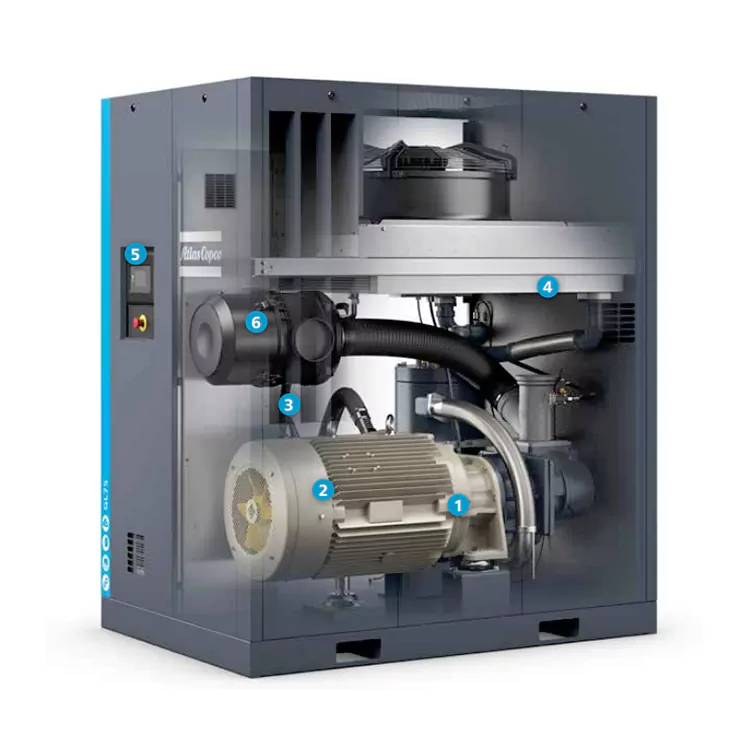

1. Maintenance-Free Drive System
The drive system is designed as a fully enclosed structure to reduce the risk of dust and debris entering critical components. High-efficiency gear transmission also avoids the efficiency losses associated with some coupling arrangements.
The standard configuration is specified for ambient temperatures up to 46°C, while the high-temperature version can operate at ambient temperatures up to 55°C, making the system suitable for demanding industrial environments.
2. High-Efficiency IE4 Motor
The compressor uses an IE4 efficiency-class motor. Its listed electrical protection class is IP55, with insulation class F and temperature-rise class B. These specifications support reliable operation in industrial environments where equipment may need to operate continuously.
3. Effective Oil and Cooling Management
The product incorporates a large oil filter, oil cooler, and aftercooler. The oil filter includes a bypass valve, while the cooling design helps control rotor outlet temperature and support component longevity.
4. Advanced Condensate Management
The integrated mechanical steam-water separator is designed to remove nearly all condensate water from the relevant system stream. This helps improve system stability and reduces the potential impact of accumulated moisture.
5. Intelligent Control and Remote Diagnosis
The Elektronikon touchscreen controller provides functions such as remote control, alarm output, maintenance planning, and network diagnosis. Smartlink remote diagnostic functionality can also support performance monitoring and optimization.
How Does the Compressor Technology Improve Performance?
The performance of a modern screw compressor depends on more than the main compression element. Transmission efficiency, motor efficiency, cooling, filtration, control systems, and maintenance design all contribute to the total lifecycle performance of the equipment.
| Technology | Function | Potential Benefit |
|---|---|---|
| High-efficiency gear drive | Transfers power efficiently to the compression element | Improved transmission efficiency |
| IE4 motor | Provides high motor efficiency | Supports reduced electrical consumption |
| Oil filtration system | Removes impurities from circulating oil | Helps protect components and extend service life |
| Oil cooler and aftercooler | Controls operating temperature | Supports stable compressor performance |
| Mechanical steam-water separator | Removes condensate | Improves air-system moisture management |
| Smart controller | Monitors operating conditions | Supports maintenance and system optimization |
| Remote diagnosis | Provides remote system monitoring | Helps identify potential issues more efficiently |
Another important feature is the heavy-duty air intake filter. According to the product information, the filter can remove 99.9% of coarse particle dust, helping protect internal compressor components in industrial environments.
What Are the Key Technical Parameters?
Technical specifications should always be evaluated according to the actual compressed-air demand of the application. The referenced Atlas GL 37-75 range provides several configurations with different motor powers and airflow capacities.
| Model | Working Pressure | FAD Flow | Motor Power | Noise | Weight |
|---|---|---|---|---|---|
| GL 37 | 4–5.5 bar(e) | 8.33 m³/min | 37 kW | 68 dB(A) | 1420 kg |
| GL 45 | 4–5.5 bar(e) | 10.5 m³/min | 45 kW | 68 dB(A) | 1490 kg |
| GL 55 | 4–5.5 bar(e) | 14.5 m³/min | 55 kW | 69 dB(A) | 1570 kg |
| GL 75 | 4–5.5 bar(e) | 17.4 m³/min | 75 kW | 69 dB(A) | 1650 kg |
The listed standard dimensions for the GL37/45/55/75 configuration are approximately 1,680 mm long, 1,221 mm wide, and 1,980 mm high. Actual configuration and performance should be confirmed with the supplier according to the intended installation conditions and application requirements.
Where Can It Be Used?
A low-pressure screw compressor can be considered for industrial processes where moderate compressed-air pressure and substantial airflow are more important than extremely high pressure.
- General manufacturing facilities
- Pneumatic production equipment
- Automated production lines
- Material handling systems
- Process-air applications
- Industrial cleaning systems
- Factory utility air systems
- Continuous-duty pneumatic equipment
Before selecting a machine, engineers should calculate peak demand, average demand, required pressure, operating hours, ambient temperature, air quality requirements, and future production expansion.
How Should You Select the Right Compressor?
Choosing the right Low-Pressure Oil-Free Screw Air Compressor requires more than comparing motor ratings. A practical selection process should consider the entire compressed-air system.
- Determine required working pressure. Identify the minimum and maximum pressure required by the production equipment.
- Calculate actual airflow demand. Evaluate both average and peak compressed-air consumption.
- Check operating conditions. Ambient temperature, dust levels, ventilation, and installation environment can influence compressor selection.
- Compare motor efficiency. Higher motor efficiency can be particularly valuable for equipment operating for long hours.
- Evaluate maintenance requirements. Consider filtration, cooling, lubrication, service intervals, and accessibility.
- Consider intelligent control. Remote diagnosis and monitoring can help improve equipment management.
- Confirm installation dimensions. Make sure the compressor room has adequate space for installation, ventilation, and maintenance.
Working with an experienced China manufacturer or supplier can also make it easier to match the compressor configuration to specific industrial requirements rather than purchasing a generic model.
Frequently Asked Questions
What is the working pressure of the referenced low-pressure compressor?
The referenced Atlas GL 37-75 configuration operates within a working-pressure range of approximately 4–5.5 bar(e). The exact operating point should be selected according to the application and compressor model.
What motor power options are available?
The referenced GL 37-75 range includes 37 kW, 45 kW, 55 kW, and 75 kW motor configurations, providing different airflow capacities for different industrial requirements.
Is the compressor suitable for continuous operation?
Yes. The product information specifically describes the compressor as suitable for continuous operation in harsh environments. However, actual continuous-duty performance depends on correct installation, operating conditions, maintenance, and application requirements.
What is the benefit of an IE4 motor?
An IE4 motor is designed to provide high electrical efficiency. For compressors operating for many hours per day, motor efficiency can have a meaningful impact on total operating costs.
Does the compressor provide remote monitoring?
Yes. The listed control system supports remote control, alarm output, maintenance planning, network diagnosis, and Smartlink remote diagnostic functions. Multi-compressor control is also available as an optional configuration.
How should I choose the correct compressor model?
Start with required working pressure and airflow, then consider operating hours, ambient conditions, air quality, motor efficiency, installation space, maintenance requirements, and future capacity needs. A professional supplier can help determine the appropriate configuration.
Conclusion
A Low-Pressure Oil-Free Screw Air Compressor can be an effective solution for industrial users seeking reliable airflow at moderate pressure while paying close attention to energy efficiency, durability, maintenance, and intelligent operation. The Dechuan solution incorporates features such as an IE4 motor, efficient gear transmission, advanced filtration and cooling, condensate separation, touchscreen control, and remote diagnostic capabilities.
For businesses comparing a China manufacturer, factory, or supplier, the most important step is to match compressor performance with actual process requirements rather than focusing on a single specification. If you are planning a new compressed-air system or upgrading existing equipment, contact us to discuss your required pressure, airflow, operating environment, and compressor configuration, and Dechuan can help you identify a suitable solution for your application.
