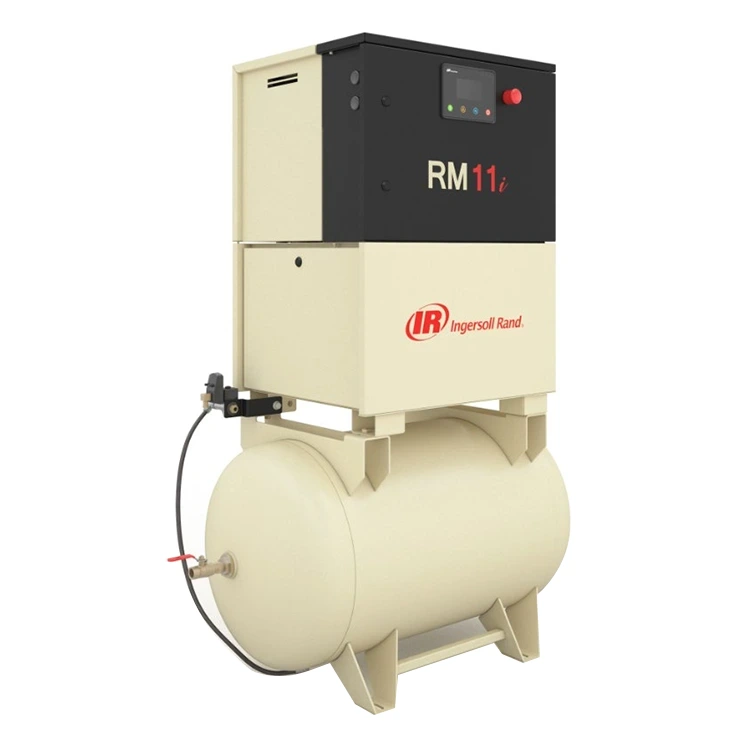

DECHUAN factory manufactures the high-quality ECO RM Screw Air Compressor. Built around an updated main air end, it yields up to 11% higher air output while cutting power bills by 12% to 30% across 7 kW to 22 kW models, with lube oil carryover kept below 3–5 ppm. Get a fast quote!
Industrial facilities looking for a reliable China supplier can implement the DECHUAN ECO RM Screw Air Compressor to stabilize production line air pressure and cut electrical utility bills. Featuring V-Shield leak-free technology, it eliminates fluid leakage at internal piping joints while maintaining header pressure stability within ±0.1 bar under variable manufacturing loads.
Air end efficiency relies on minimizing air slippage between rotor lobes during compression. The asymmetrical 5:6 lobe geometry inside this air compressor reduces internal re-circulation, raising volumetric air output by up to 11% per kilowatt consumed.
| ECO Performance Benchmarks | Performance Value |
|---|---|
| Air End Displacement Gain | Up to +11% Increase |
| Volumetric Yield Boost | Up to +11% Efficiency |
| Total Power Cost Reduction | 12% to 30% Savings |
| Residual Lube Oil Ceiling | Below 3–5 ppm |
When connected to an external heat recovery skid, the ECO RM Screw Air Compressor oil cooling system transfers waste heat into process water loops, producing utility water up to 70°C for plant washing systems.
| Model |
Rated Power
kW
|
Max Pressure
barg
|
Air Delivery (FAD*)
m³/min-50Hz
|
Overall Dimension (L x W x H)
mm
|
Weight
kg
|
| i Standard Unit Performance | |||||
| RM7i_A | 7.5 | 7.5 | 1.22 | 716 x 677 x 1061 | 222 |
| 8.5 | 1.14 | ||||
| 10 | 1.00 | ||||
| 12.5 | 0.81 | ||||
| RM11i_A | 11 | 7.5 | 1.69 | 225 | |
| 8.5 | 1.58 | ||||
| 10 | 1.41 | ||||
| 12.5 | 1.23 | ||||
| RM15i_A | 15 | 7.5 | 2.50 | 984 x 1017 x 1065 | 465 |
| 8.5 | 2.40 | ||||
| 10 | 2.07 | ||||
| 12.5 | 1.70 | ||||
| RM18i_A | 18.5 | 7.5 | 3.10 | 993 x 1020 x 1118 | 509 |
| 8.5 | 3.00 | ||||
| 10 | 2.61 | ||||
| 12.5 | 2.15 | ||||
| RM22i_A | 22 | 7.5 | 3.70 | 524 | |
| 8.5 | 3.41 | ||||
| 10 | 3.08 | ||||
| 12.5 | 2.72 | ||||
| Model |
Rated Power
kW
|
Max Pressure
barg
|
Air Delivery (FAD*)
m³/min
|
Overall Dimension (L x W x H)
mm
|
Weight
kg
|

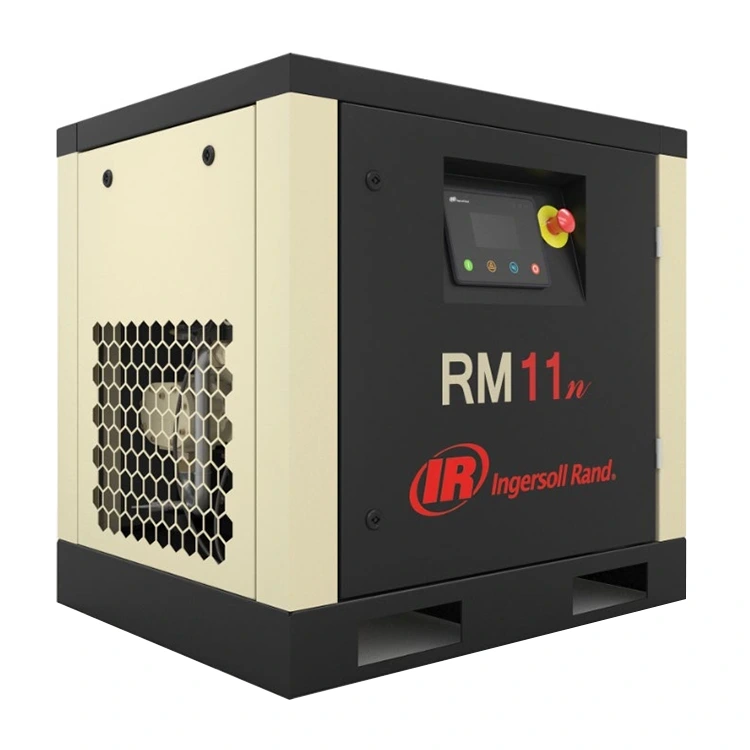

| n Standard Unit Performance | |||||
| RM7n_A | 7.5 | 12.5 | 1.18 | 840 x 680 x 810 | 169 |
| RM11n_A | 11 | 12.5 | 1.65 | 182 | |
| 1. Air Delivery (FAD*) (volumetric flow) is the operating parameter of the complete unit, tested in accordance with Appendix C of ISO 1217:2009. | |||||
Precision processes like fiber laser cutting and heavy workpiece clamping require stable air output above standard 7.5 barg line pressure. Pressure drops during cutting can cause oxidation burrs on sheet metal edges, leading to secondary grinding costs.
| Model | Power (kW) | Max Press (barg) | 12.5 barg FAD (m³/min) |
|---|---|---|---|
| RM7i_A | 7.5 | 12.5 | 0.81 |
| RM11i_A | 11 | 12.5 | 1.23 |
| RM15i_A | 15 | 12.5 | 1.70 |
| RM18i_A | 18.5 | 12.5 | 2.15 |
| RM22i_A | 22 | 12.5 | 2.72 |
Multi-stage oil separation keeps oil carryover below 3 ppm, keeping optics clear and downstream air valves clean.
DECHUAN supplies pre-packaged maintenance options for long-term service of the ECO RM Screw Air Compressor.
Factory-matched 2,000-hour and 4,000-hour filter and seal kits shipped with initial equipment orders.
Original replacement filters carry laser-etched serial numbers for online verification.
Supported by PartsCARE component delivery and PackageCARE full maintenance coverage.
The IE5 permanent magnet VSD motor modulates shaft speed between 40% and 100% capacity. When air consumption drops, the ECO RM Screw Air Compressor controller lowers motor RPM, eliminating unload power loss while maintaining line pressure within ±0.1 bar.
Elevated oil carryover usually indicates a clogged air-oil separator element or fluid breakdown caused by excessive running temperatures. Replacing the separator element restores fluid separation below 3–5 ppm.
The top-mounted cooler utilizes a non-welded horizontal design that absorbs expansion stress caused by continuous heating and cooling cycles, preventing weld fatigue cracks and oil leaks over time.
Initial response within 5–10 minutes after inquiry received; formal quotation provided within 24 hours.
Professional online technical support available all day, providing free product selection and customized compressed air system solutions.
Support on-site factory inspection and online video factory tour; all visit requests responded within 48 hours.
All delivered compressors adopt 100% original factory parts, without refurbished or substitute components.
Regular 380V/50Hz standard compressors are in stock, deliverable within 40 working days.
Support custom brand logo, color, and global voltage specifications; production cycle: 30–70 working days based on customization demands.
Each unit undergoes full performance testing and strict quality inspection before shipment to ensure stable quality.
Equipped with qualified export wooden cases, fully compliant with international sea freight and long-distance transportation standards.
Wearable parts warranty for 3–12 months; core host components follow official factory warranty standards.
30-minute remote guidance for fault reports; 2-hour emergency technical docking for installation and quality issues.
Only charge spare parts cost for after-warranty maintenance, no additional service fee.
Sufficient spare parts inventory ensures fast and accurate accessories supply.
Round-the-clock online technical guidance and free remote fault diagnosis.
Free online installation & commissioning guidance, as well as operation and maintenance training for customer staff.
