Product Description

Keep your facility operating reliably by sourcing an Oil Injected Screw Compressor for Plants directly from the DECHUAN supply chain. It features high-load gear transmission and an optimized rotor layout, reducing downtime for long-shift operations.

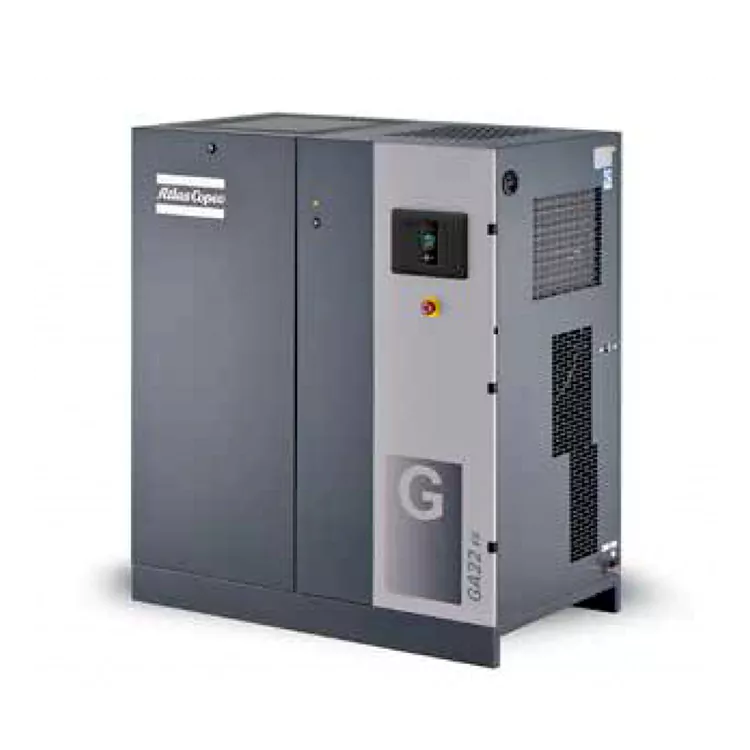

Oil Injected Screw Compressor for Plants

Meeting the Demands of Continuous 24/7 Factory Production

In large industrial facilities like steel mills, chemical plants, and heavy machinery workshops, the compressed air system is a critical utility. If a low-tier air compressor overheats, drops line pressure, or shuts down unexpectedly during a peak shift, it can stop entire automated production lines, leading to expensive material waste, idle labor, and severe delivery delays.

The Oil Injected Screw Compressor for Plants is engineered specifically to handle these demanding, high-load factory conditions. Built with high-grade components, including an IP55-rated heavy-duty electric motor and a direct-coupled gear drive, this machine is rated for a 100% continuous duty cycle. It runs reliably day and night through demanding conditions, ensuring your factory maintains a stable, continuous supply of compressed air to keep your main assembly lines running smoothly.

Oil Injected Screw Compressor for Plants

Technical Performance Parameters & Physical Footprints

The performance metrics below highlight the high free air delivery volumes provided by our industrial plant air systems.

GA Series Technical Parameters

Model	Max Working Pressure bar(e)	Max Working Pressure psi	FAD Flow l/s	FAD Flow m³/min	FAD Flow cfm	Motor Power kW	Motor Power hp	Noise Level dB(A)	Weight Standard kg	Weight Standard lbs	Weight Full-performance kg	Weight Full-performance lbs	Outlet Size
GA11	7.5	109	32.4	1.94	69.4	11	15	68	416	918	469	1035	G1*
GA11	8.5	123	29.9	1.80	64.1	11	15	68	416	918	469	1035	G1*
GA11	10.5	152	25.9	1.55	55.5	11	15	68	416	918	467	1030	G1*
GA11	13	189	22.0	1.32	47.1	11	15	68	416	918	465	1026	G1*
GA11	16	231	19.2	1.15	40.6	11	15	65	406	895	497***	1096	G1*
GA15	7.5	109	45.8	2.75	97.1	15	20	65	421	928	474	1045	G1*
GA15	8.5	123	42.0	2.52	88.9	15	20	65	421	928	474	1045	G1*
GA15	10.5	152	38.8	2.33	82.2	15	20	65	421	928	472	1041	G1*
GA15	13	189	32.6	1.95	69.0	15	20	65	421	928	470	1036	G1*
GA15	16	231	27.8	1.67	59.0	15	20	67	425	937	470	1036	G1*
GA18	7.5	109	56.5	3.39	119.6	18.5	25	67	431	950	495	1091	G1*
GA18	8.5	123	53.8	3.23	114.0	18.5	25	67	431	950	495	1091	G1*
GA18	10.5	152	49.0	2.94	103.8	18.5	25	67	431	950	493	1087	G1*
GA18	13	189	40.7	2.44	86.2	18.5	25	67	431	950	491	1082	G1*
GA18	16	231	35.5	2.13	75.2	18.5	25	67	437	963	491	1082	G1*
GA22	7.5	109	65.1	3.91	138.0	22	30	68	440	970	495	1091	G1*
GA22	8.5	123	63.5	3.81	134.6	22	30	68	440	970	495	1091	G1*
GA22	10.5	152	53.3	3.20	112.9	22	30	68	440	970	493	1087	G1*
GA22	13	189	49.0	2.94	103.8	22	30	68	440	970	491	1082	G1*
GA22	16	231	41.2	2.47	87.2	22	30	68	449	990	491	1082	G1*
GA26	7.5	109	72.9	4.37	154.4	26	35	69	500	1102	558	1230	G1*
GA26	8.5	123	68.1	4.09	144.2	26	35	69	500	1102	558	1230	G1*
GA26	10.5	152	61.5	3.69	130.3	26	35	69	500	1102	556	1226	G1*
GA26	13	189	54.7	3.28	115.9	26	35	69	500	1102	554	1221	G1*

Unit performance parameters tested in accordance with ISO 1217, Ed.3, Annex C-1996 Noise level complies with ISO 2151 / Pneurop / CagiPN8NTC2

Reference test conditions:

· Absolute inlet pressure: 1 bar

· Air inlet temperature: 20°C Pressure dew point of built-in dryer for GA 11-26: 5°C

FAD flow measured under below operating pressures:

· 7.5 bar models tested at 7 bar

· 8.5 bar models tested at 8 bar

· 10.5 bar models tested at 10 bar

· 13 bar models tested at 12.5 bar

GA11/15/18/22/26*/30 Integrated Dryer Models Data Table

Model	Max Working Pressure-Standard bar(e)	Max Working Pressure-Standard psig	Max Working Pressure-Full Performance bar(e)	Max Working Pressure-Full Performance psig	FAD Flow l/s	FAD Flow m³/min	FAD Flow cfm	Motor Power kW	Motor Power hp	Noise Level dB(A)	Weight Standard kg	Weight Full-performance kg	Outlet Size
GA 11*	7.5	109	7.3	105	37.7	2.26	79.8	11	15	68	467	507	G1*
GA 11*	8.5	123	8.3	120	35.2	2.11	74.6	11	15	68	467	507	G1*
GA 11*	10.5	152	10.3	149	32.2	1.93	68.2	11	15	68	467	507	G1*
GA 11*	13	189	12.8	185	26.0	1.56	55.1	11	15	68	467	507	G1*
GA 15*	7.5	109	7.3	105	51.6	3.10	109.3	15	20	69	478	534	G1*
GA 15*	8.5	123	8.3	120	47.7	2.86	101.0	15	20	69	478	534	G1*
GA 15*	10.5	152	10.3	149	42.8	2.57	90.7	15	20	69	478	534	G1*
GA 15*	13	189	12.8	185	35.5	2.13	75.2	15	20	69	478	534	G1*
GA 18*	7.5	109	7.3	105	62.2	3.73	131.7	18.5	25	69	480	536	G1*
GA 18*	8.5	123	8.3	120	57.9	3.47	122.6	18.5	25	69	480	536	G1*
GA 18*	10.5	152	10.3	149	53.5	3.21	113.3	18.5	25	69	480	536	G1*
GA 18*	13	189	12.8	185	44.1	2.65	93.4	18.5	25	69	480	536	G1*
GA 22*	7.5	109	7.3	105	73.5	4.41	155.7	22	30	67	539	597	G1*
GA 22*	8.5	123	8.3	120	69.4	4.16	147.0	22	30	67	539	597	G1*
GA 22*	10.5	152	10.3	149	61.5	3.69	130.3	22	30	67	539	597	G1*
GA 22*	13	189	12.8	185	54.3	3.26	115.0	22	30	67	539	597	G1*
GA 26*	7.5	109	7.3	105	85.7	5.14	181.5	26	35	68	571	629	G1*
GA 26*	8.5	123	8.3	120	82.0	4.92	173.7	26	35	68	571	629	G1*
GA 26*	10.5	152	10.3	149	76.5	4.59	162.0	26	35	68	571	629	G1*
GA 26*	13	189	12.8	185	66.4	3.98	140.6	26	35	68	571	629	G1*
GA 30	7.5	109	7.3	105	95.9	5.75	203.1	30	40	70	579	634	G1*
GA 30	8.5	123	8.3	120	91.8	5.51	194.4	30	40	70	579	634	G1*
GA 30	10.5	152	10.3	149	85.0	5.10	180.0	30	40	70	579	634	G1*
GA 30	13	189	12.8	185	76.4	4.58	161.8	30	40	70	579	634	G1*

Unit performance parameters tested in accordance with ISO 1217, Ed.3, Annex C-1996 Noise level complies with ISO 2151 / Pneurop / CagiPN8NTC2

Reference test conditions:

· Absolute inlet pressure: 1 bar

· Air inlet temperature: 20°C Pressure dew point of built-in dryer for GA 11*-30: 2°C ~ 3°C

FAD flow measured under below operating pressures:

· 7.5 bar models tested at 7 bar

· 8.5 bar models tested at 8 bar

· 10.5 bar models tested at 10 bar

· 13 bar models tested at 12.5 bar

Continuous Operation in a Chemical Plant

A large chemical processing facility in Zhejiang operated an older belt-driven compressor to run their pneumatic material conveying valves. Because the air system was exposed to fine chemical dust and hot ambient temperatures, the drive belts slipped frequently and wore out quickly, causing unexpected line shutdowns twice a month that cost the factory over $8,000 in lost production time.

DECHUAN fixed this issue by installing a heavy-duty Oil Injected Screw Compressor for Plants (GA26 model). Our technical team set up the direct gear-driven system with an IP55-rated high-efficiency motor. Over eighteen months of continuous 24/7 operation, the compressor has experienced zero belt-slip issues or dust-related motor failures, keeping their material conveying lines running smoothly and saving hours of emergency repair labor.

Heavy-Duty Industrial Engineering Features

1. IP55 Rated Motor Frame: The fully sealed motor enclosure prevents airborne factory dust, grit, and moisture from settling on the internal windings, preventing electrical shorts.

2. Robust Gear Transmission: Uses an efficient gearbox assembly to transfer power directly to the rotors, removing regular belt tensioning work and preventing slippage power losses.

3. High-Capacity Fluid Cooler: The large oil and air aftercooler layout keeps internal temperatures low, preventing oil thinning even during long summer shifts.

Oil Injected Screw Compressor for Plants

Technical Procurement FAQ

Q: What component design allows the Oil Injected Screw Compressor to manage continuous full-load cycles?

A: The compressor is built with a direct-drive gear transmission system instead of a standard belt assembly. This high-load gear configuration eliminates belt slippage and power loss, providing reliable power transfer and reduced maintenance under continuous operation.

Q: How does the system prevent airborne particulate contamination from entering the screw rotors?

A: The Oil Injected Screw Compressor for Plants features a high-efficiency air intake filter that traps fine industrial dust particles before they can enter the compression chamber, protecting internal components from premature abrasive wear.

Q: What is the recommended service interval for the air-oil separator element?

A: Under normal plant operating conditions, the heavy-duty vertical separation element should be replaced every 4000 operational hours to maintain optimal performance and keep oil carryover below standard thresholds.
