DECHUAN is a professional Remotely Manageable RM Screw Air Compressor factory. Equipped with an updated air end across 7 kW to 22 kW capacities, it delivers up to 11% higher air volume while streaming real-time operational data and maintaining oil carryover under 3–5 ppm. Contact us!
As an established China supplier, DECHUAN builds the Remotely Manageable RM Screw Air Compressor to give plant engineers complete control over off-site air systems. Using V-Shield leak-free piping, it prevents pressure drops and fluid leaks while holding compressed air header pressure within ±0.1 bar across heavy-duty assembly lines.
Continuous motor vibration can cause conventional threaded pipe connections to weep lubricant, leading to cabinet oil accumulation and line pressure drop. The Remotely Manageable RM Screw Air Compressor V-Shield technology replaces threads with flat-face O-ring flange couplings fitted with Viton gaskets.
Servicing personnel can disconnect and reconnect fluid lines without deforming flange faces or damaging threads.
O-ring seats remain fluid-tight under maximum 13 bar working pressures and high vibration.
Three-stage separation elements keep residual oil under 3–5 ppm, protecting downstream valves and cylinders.
Powers continuous high-speed filling and sealing automation lines.Remote Operational Monitoring and Data Logging Architecture
| Design Parameter | RM11i_A Standard | RM11n_A Compact |
|---|---|---|
| Dimensions (L x W x H) | 716 x 677 x 1061 mm | 840 x 680 x 810 mm |
| Cabinet Footprint | ~0.48 m² | ~0.57 m² (Low Height) |
| Machine Weight | 225 kg | 182 kg |
| Max Rated Pressure | 7.5 to 12.5 barg | 12.5 barg Standard |
| FAD Air Output | 1.23 m³/min | 1.65 m³/min |

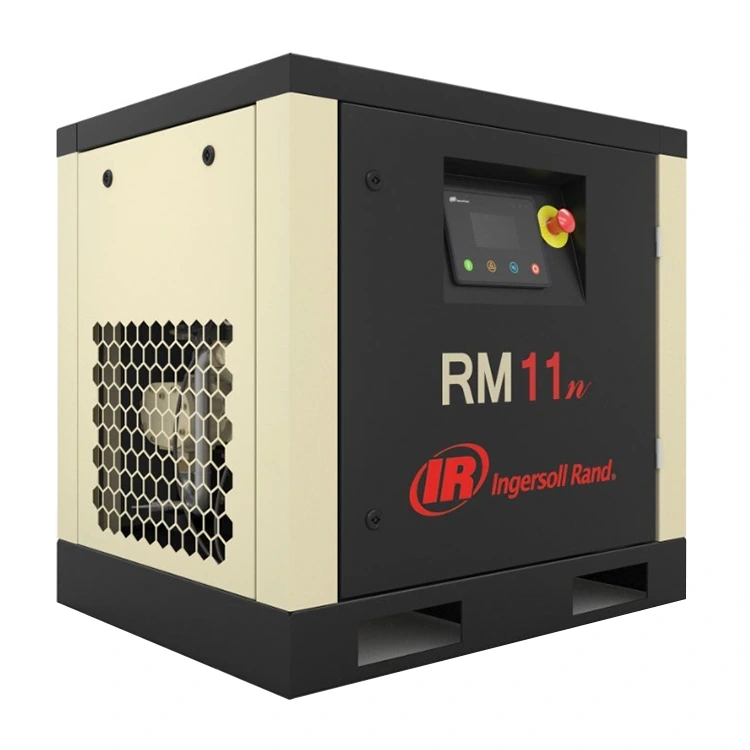

The lowered cabinet profile simplifies installation under mezzanine floors and integrated machine skids without restricting maintenance panel access.
| Model |
Rated Power
kW
|
Max Pressure
barg
|
Air Delivery (FAD*)
m³/min-50Hz
|
Overall Dimension (L x W x H)
mm
|
Weight
kg
|
| i Standard Unit Performance | |||||
| RM7i_A | 7.5 | 7.5 | 1.22 | 716 x 677 x 1061 | 222 |
| 8.5 | 1.14 | ||||
| 10 | 1.00 | ||||
| 12.5 | 0.81 | ||||
| RM11i_A | 11 | 7.5 | 1.69 | 225 | |
| 8.5 | 1.58 | ||||
| 10 | 1.41 | ||||
| 12.5 | 1.23 | ||||
| RM15i_A | 15 | 7.5 | 2.50 | 984 x 1017 x 1065 | 465 |
| 8.5 | 2.40 | ||||
| 10 | 2.07 | ||||
| 12.5 | 1.70 | ||||
| RM18i_A | 18.5 | 7.5 | 3.10 | 993 x 1020 x 1118 | 509 |
| 8.5 | 3.00 | ||||
| 10 | 2.61 | ||||
| 12.5 | 2.15 | ||||
| RM22i_A | 22 | 7.5 | 3.70 | 524 | |
| 8.5 | 3.41 | ||||
| 10 | 3.08 | ||||
| 12.5 | 2.72 | ||||
| Model |
Rated Power
kW
|
Max Pressure
barg
|
Air Delivery (FAD*)
m³/min
|
Overall Dimension (L x W x H)
mm
|
Weight
kg
|
| n Standard Unit Performance | |||||
| RM7n_A | 7.5 | 12.5 | 1.18 | 840 x 680 x 810 | 169 |
| RM11n_A | 11 | 12.5 | 1.65 | 182 | |
| 1. Air Delivery (FAD*) (volumetric flow) is the operating parameter of the complete unit, tested in accordance with Appendix C of ISO 1217:2009. | |||||
The integrated Luminance controller connects to plant networks or cloud platforms using Modbus RTU and IoT gateway hardware. Maintenance teams can monitor working pressure, fluid temperature, drive load, and power consumption remotely via web browsers or mobile applications.
| Remote Management & Performance Specs | Performance Value |
|---|---|
| Main Unit Efficiency Increase | Up to +11% Volumetric Gain |
| Discharge Output Boost | Up to +11% Air Volume |
| Total Electrical Savings | 12% to 30% Power Reduction |
| Fluid Carryover Limit | Below 3–5 ppm |
When connected to an external heat recovery module, waste heat from the lubricant oil circuit can produce process hot water up to 70°C for boiler preheating or factory washrooms.
DECHUAN supplies pre-packaged service support to maintain the Remotely Manageable RM Screw Air Compressor over continuous duty cycles.
Optional 2,000-hour and 4,000-hour filter and seal replacement kits shipped with initial machine orders.
Original replacement parts carry tracking codes for anti-counterfeiting verification online.
Backed by PartsCARE component supply and PackageCARE complete maintenance coverage.
Mounts inside truck bodies or containerized work shelters.
Fits next to CNC tools where floor space is limited.
Low total weight allows installation on elevated plant walkways.
The Luminance controller utilizes built-in IoT hardware to send fault alerts, operational warnings, and service reminders over cellular or Ethernet connections directly to mobile devices or web monitoring software.
Inspect the air-oil separator differential pressure. If the pressure drop across the filter exceeds 0.8 bar, replace the separator element and clear the oil return scavenge line orifice.
Yes. The Remotely Manageable RM Screw Air Compressor top cooler features a non-welded horizontal core accessible from the top panel. Technicians can clear cooling fins using dry compressed air without disconnecting oil supply lines.
DECHUAN offers one-stop compressed air system solutions, covering genuine equipment supply, energy-saving customization, global trade and full lifecycle services. Our core advantages are listed below:
100% original Atlas Copco and Ingersoll Rand compressors and spare parts. Full product coverage including oil-injected, oil-free, low-pressure, VSD, centrifugal and mobile models to meet diverse industrial needs.
Provide customized air system design, installation, commissioning and energy-saving retrofit. Advanced VSD technology saves up to 35% energy, effectively reducing customers’ overall operating costs.
We provide standardized full-cycle professional services:
- Pre-sales: Fast inquiry reply, 24h quotation, 7×24h technical support and factory visit service
- In-sales: Adequate stock, fast delivery, OEM/ODM customization and strict pre-shipment quality inspection
- After-sales: Complete warranty, rapid remote & on-site maintenance, regular inspection and free technical training
Integrated import and export services including procurement, customs clearance and logistics. Optimized supply chain delivers competitive prices, stable quality and lower procurement costs.
Rich service experience in steel, chemical, automotive, medical, new energy and other industries. Shanghai-based local team provides fast response and efficient on-site support.
Professional factory-trained team provides full-lifecycle maintenance and genuine parts supply. Cost-effective after-warranty service maximizes equipment uptime and service life.
