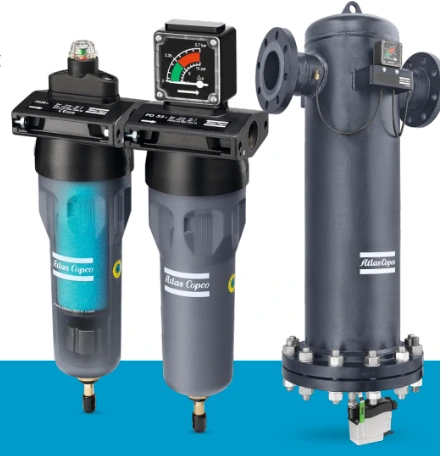

Filter Series

How do I find the right air compressor filter for my application?

The first step is to find out which type of contaminant(s) you have to protect your system from and determine the air purity class required for your application.

Identifying the contaminants in your system and determining the required air purity class for your application. Atlas Copco offers a wide range of compressed air filter series specifically designed to tackle various threats. Use the table below to select the optimal compressed air filter based on the contaminants present in your system. This ensures your air filtration system operates efficiently and protects your equipment from harmful substances.

DC Compressor is a professional Post-processing Equipment manufacturer and supplier in China. Welcome to consult and purchase.

Why choose Atlas Copco’s range of air compressor filters?

Atlas Copco’s dedicated filtration team is always looking for ways to give you competitive edge. Our new generation of compressed air filter series features several innovations that make your air compressor system more efficient and its operation easier. Here are just three examples：

The ideal filtration technology

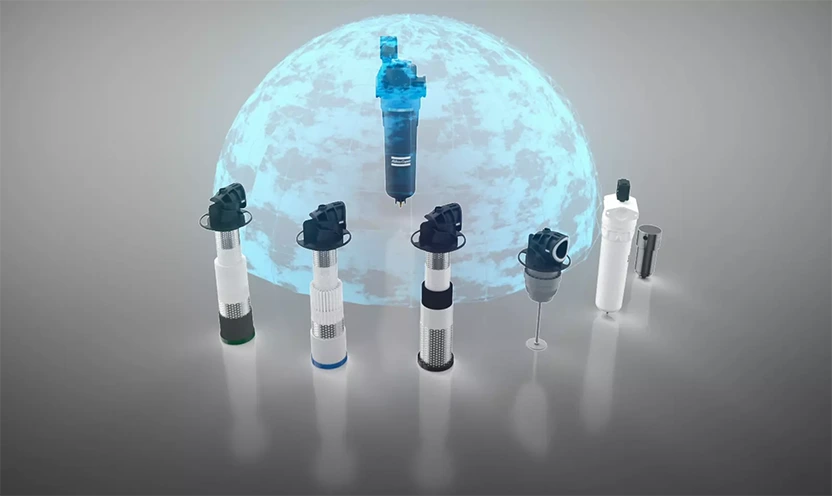

To ensure that your system is optimally protected, our filters use different filtration technologies – each designed to take on a specific threat to your airstream. They include:

Wrapped media for wet particles：Wrapped media are known for their durability in wet and oil-contaminated environments. Our patented Nautilus technology combines multiple wrapped layers to offer constant air quality at the lowest pressure drop, even in the harshest working conditions.

Pleated media for solid particles：Pleating is the optimal technology for capturing dry particulates in compressed air. Pleated media have a large surface area and therefore ensure a longer filter service lifetime and lower pressure drop.

Macro-structured activated carbon：Macro-structured activated carbon has a larger surface compared to the typical carbon filter media, giving it a superior adsorption capacity and a steady performance over a longer time.

Cyclone for water：The use of centrifugal forces secures a proper separation of liquid water droplets in the air flow.

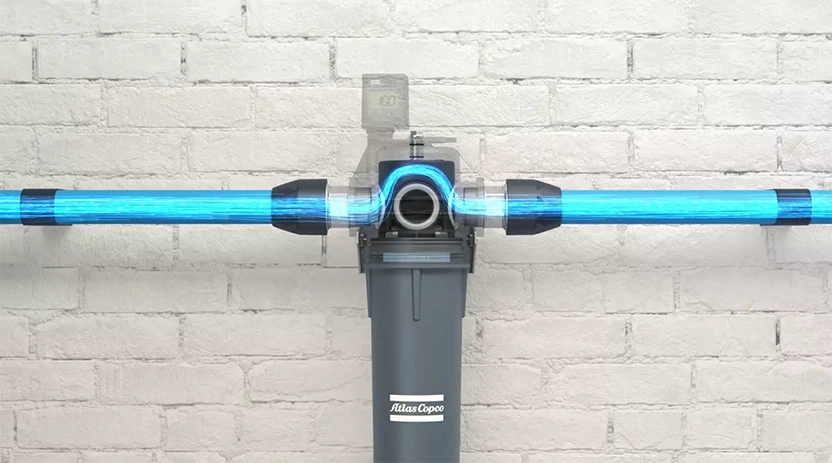

inPASS™ bypass

In addition to outstanding filters, you also get the revolutionary built-in bypass that allows you to service your filter without disrupting the air flow.

To you that means big investment savings by eliminating the need to install an expensive external piping bypass, lower operating and energy costs as well as reduced maintenance times.

Service indicator

To ensure constant air quality, a service indicator allows for an easy check of the filter’s running hours differential pressure, and the maintenance status. It can even send a remote alert.

This table provides information about compressed air filter series and their general applications.

Talk to an expert

Choosing the right filter is important and you want to get it right to optimally protect your system and minimize your investment costs. So, if you are still unsure which contaminant you have to filter out or which ISO class you have to meet, just get in touch with Atlas Copco and we will help you find the right solution.

General applications

Special applications

Which filter for which purity class?

Another way of finding the right filter is to look at your application to determine the air purity it requires according to the international ISO 8573-1:2010 standard. The table below shows the various ISO 8573-1:2010 air purity classes and the Atlas Copco filters and dryer-combinations that meet these classes.

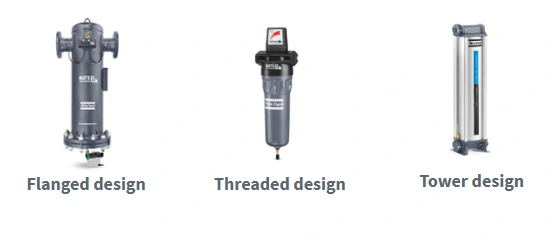

Examples of typical installations

DDp(+)/PDp(+) Series: Ultimate Dry Particle Filtration

DDp(+) and PDp(+) filter series effectively prevent dust, particles, and microorganisms from entering compressed air caused by corrosion, contaminants, and adsorption materials. These innovative filtration solutions are designed to deliver optimal air purity in a cost-effective manner, meeting today's ever-increasing quality requirements.

Your Benefits

Maximum removal of dirt, solid particles, microorganisms, and rust particles

Highly efficient glass fiber and foam media

Significant energy savings and limited system operating costs

Optimal design and filter media with low pressure loss.

High Reliability

High-performance stainless steel core, double O-rings, epoxy sealing cap, and filter housing with an anti-corrosion coating.

Easy Maintenance

External ribs on the threaded housing, or a rotating bottom cover on the welded housing for pushing in the filter cartridge.

Energy Usage Monitoring

Differential pressure indication (indicators ranging from 10-35 L/s, gauges ranging from 45-8000 L/s) (standard range optional).

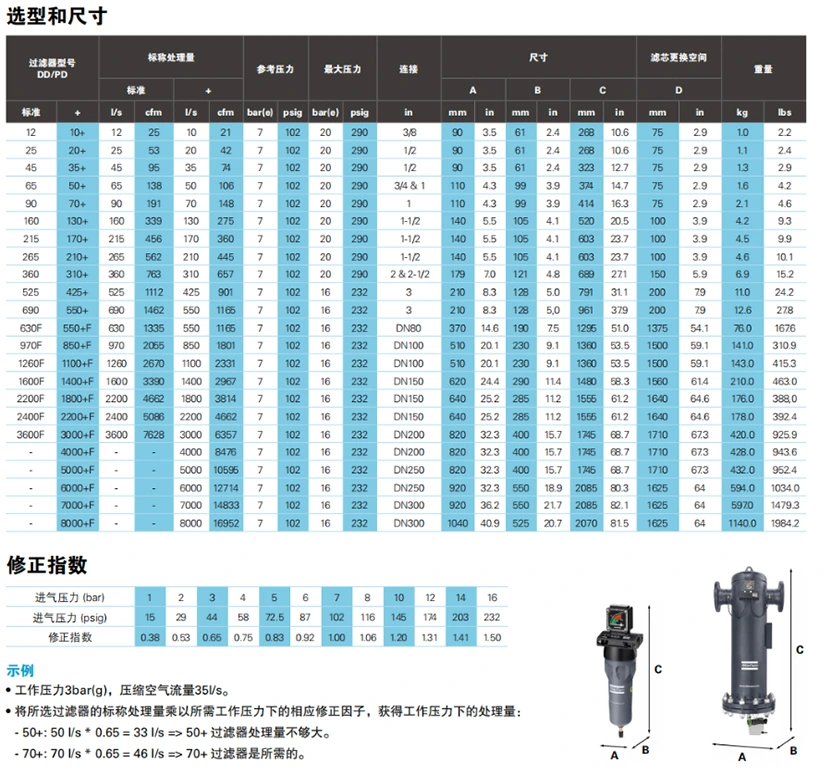

Technical benefits
